Down the Tree, Up the Tree

SwiftUI talks in two directions.

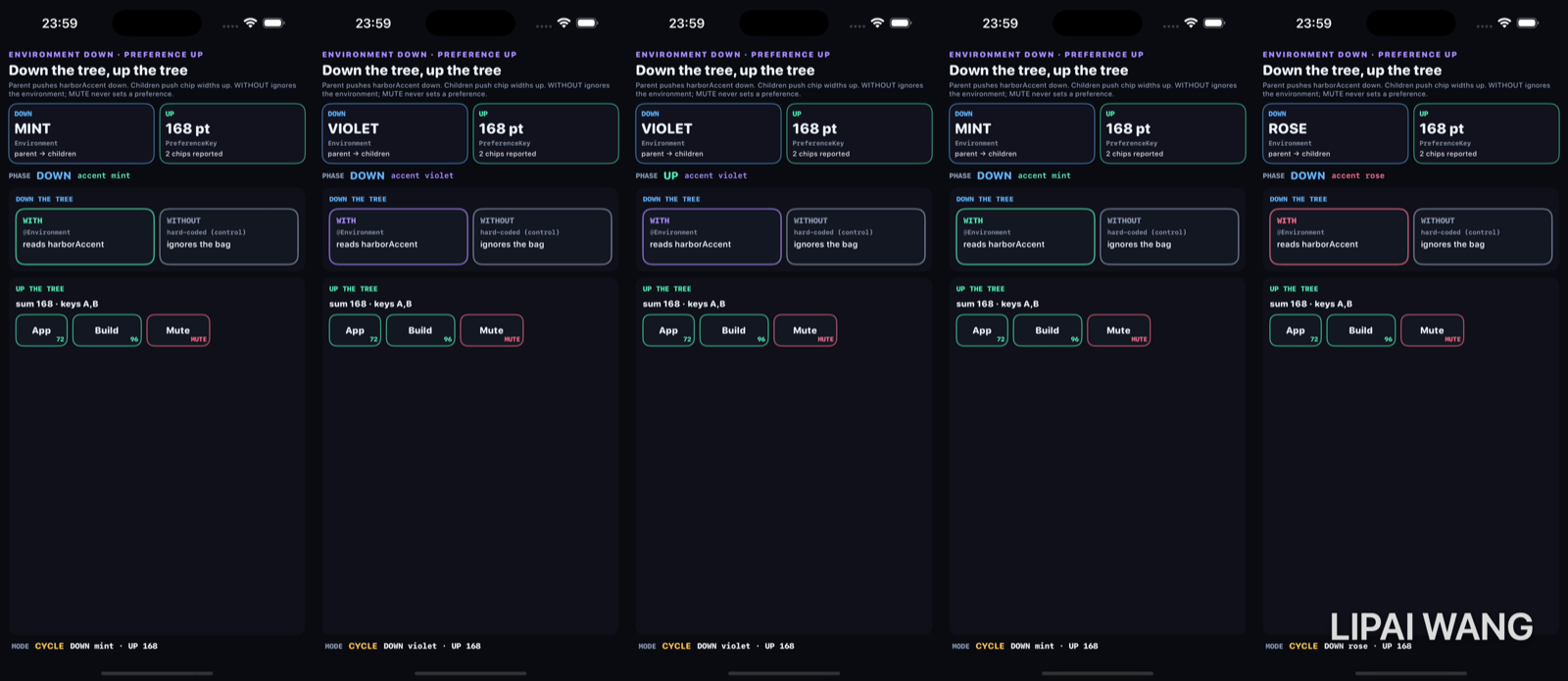

Down the tree: a parent writes a value into the environment and descendants read it. Up the tree: children publish measurements through a PreferenceKey and an ancestor rolls them up. This bench runs both on one screen and puts a control next to each.

Down — mint

.environment(\.harborAccent, accent.color)

struct WithAccentLeaf: View {
  @Environment(\.harborAccent) private var accent
  // …
}

App reports 72, Build 96, Mute shows MUTE. 72 + 96 = 168.

Down — rose (same control)

DOWN ROSE. WITH picks up the new accent. WITHOUT is still the hard-coded gray control — it never asked @Environment(\.harborAccent).

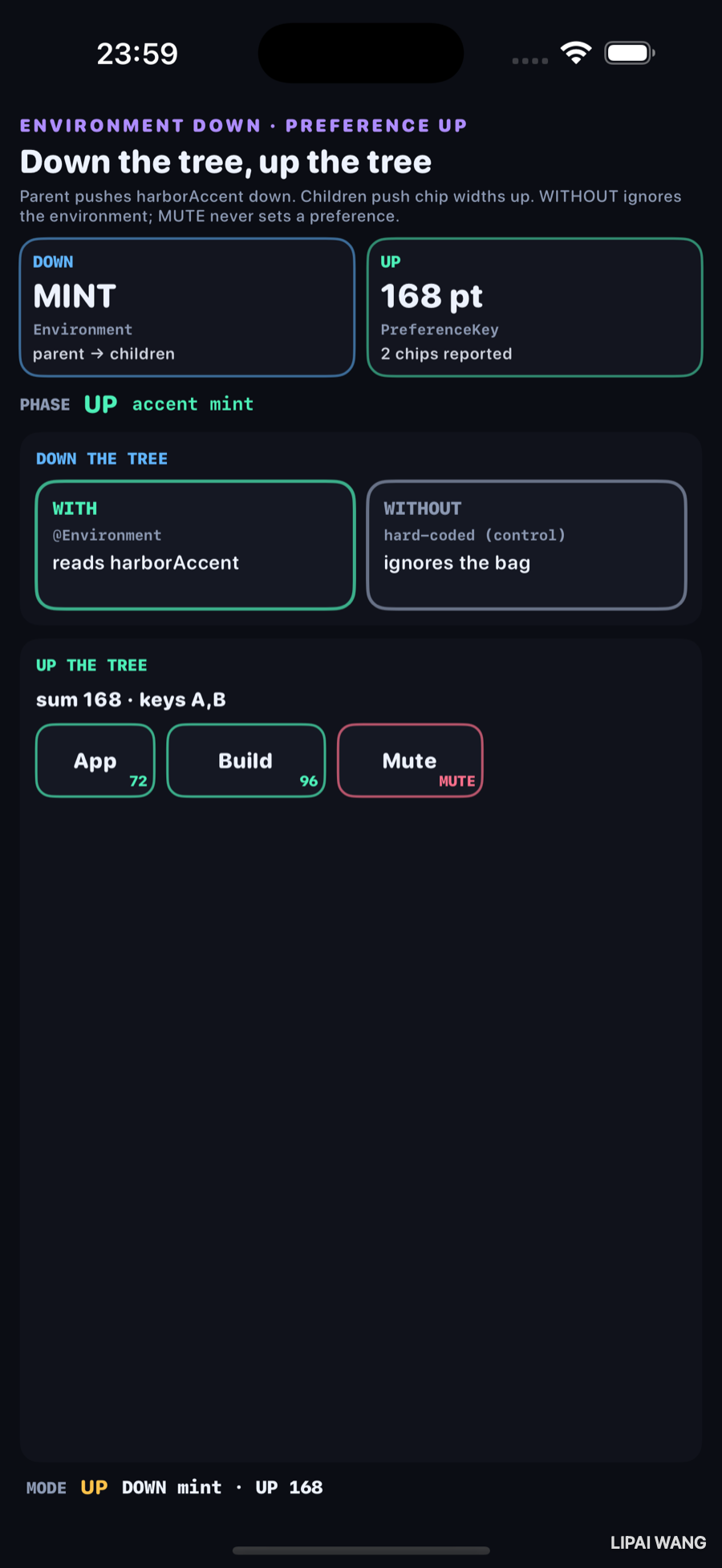

Up — the roll-up

.preference(key: ChipWidthKey.self, value: [id: geo.size.width])

.onPreferenceChange(ChipWidthKey.self) { reported = $0 }

Observed roll-up: sum 168 · keys A,B. Mute never enters the dictionary.

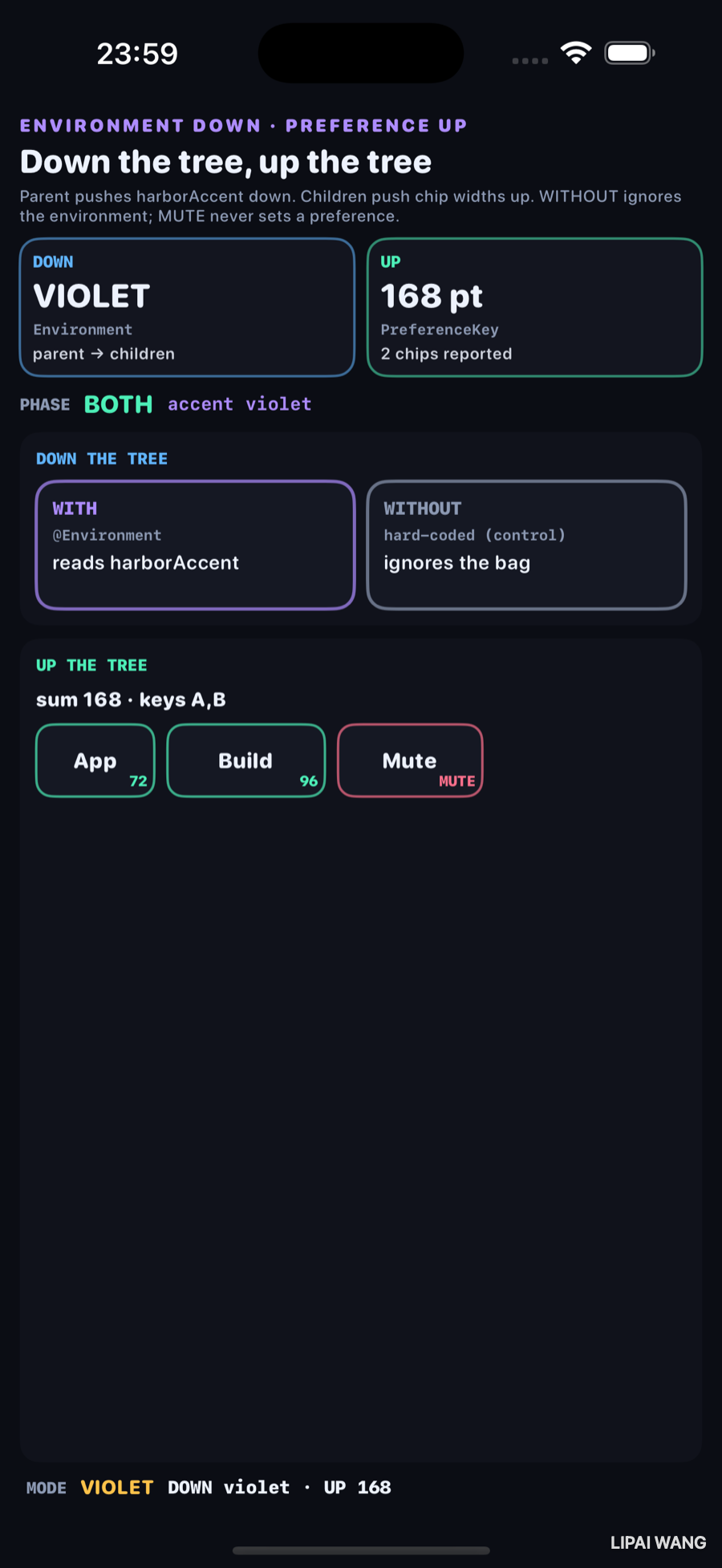

Both directions at once

PHASE BOTH, accent violet. DOWN card VIOLET, UP card still 168 pt / 2 chips. The two pipes do not fight — environment and preferences are different channels.

Mini-exercise

Set reports: true on Mute. Re-run. The UP card should move to 256 pt (168 + 88) and keys should include C.

Challenges

1. Add a second custom environment value (harborTitle) and show WITH reading both.
2. Change ChipWidthKey.reduce to keep the max width instead of merging all keys — photograph the new UP number.
3. Use anchorPreference to lift a chip's center and draw a line from the parent header to it.
4. Inject .environment(\.harborAccent, .orange) only around WITH and prove WITHOUT still gray while a nested grandchild of WITH turns orange.
5. XCUITest: after -mode rose, assert text contains ROSE and 168.

Key Points

• Environment travels down; preferences travel up.
• Observed accents: mint, rose, violet on WITH; WITHOUT stays gray.
• Observed preference sum: 168 pt from 72 + 96.
• Observed keys: A,B — Mute excluded.
• EnvironmentKey + .environment + @Environment is the down pipe.
• PreferenceKey + .preference + .onPreferenceChange is the up pipe.
• Controls: WITHOUT ignores the bag; MUTE never sets a preference.
• Chapter 7 negotiated size offers; this chapter moves named values and reported measurements along the tree.

Next up: custom Layout — a flow layout against Layout, printing the ProposedViewSize it receives and what each subview answers.
